LED街路照明制御プロジェクト用のインテリジェントキャビネット

インテリジェントキャビネットは、スマートシティLED街路照明プロジェクトの重要な制御ソリューションです.グリッドと街路照明を同時に制御および監視します,エネルギーメーターなどのサードパーティデバイスと幅広く連携します,三相電流センサー,過電圧保護装置,照度センサー,やモーションセンサーなど.インターネットがあれば、世界中のすべての街灯キャビネットを監視および制御できます.。


モーションセンサーおよび日光強度検出センサー,と接続することにより、都市道路,高速道路,トンネル,倉庫での効果的なエネルギー資産管理に関するインテリジェントな照明制御管理システムに最適なソリューションとシームレスを提供します。 ,工場,建物,変電所,空港照明プロジェクト.サードパーティのセンサーリンケージオプション.


集中型コントローラーのPDFファイルの重要な要素は 以下をダウンロード:

  • ブランド:

    SOWIN
  • 注文(MOQ):

    1
  • 支払い:

    T/T
  • 製品の起点:

    China
  • 色:

    Gray
  • 出荷ポート:

    Guang Zhou
  • リードタイム:

    5 weeks

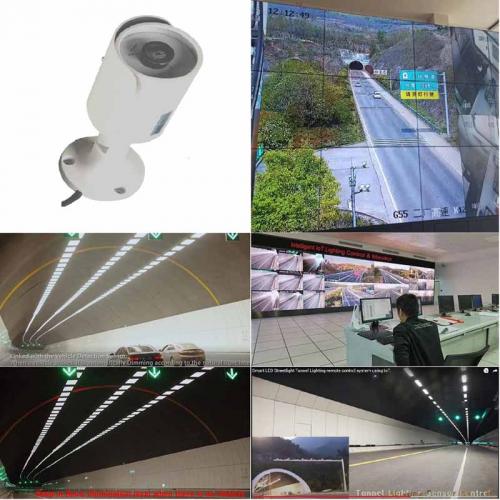

93kmの深セン外輪高速道路街路灯とトンネルライトグループに表示されるPLCとloraテクノロジーの詳細:

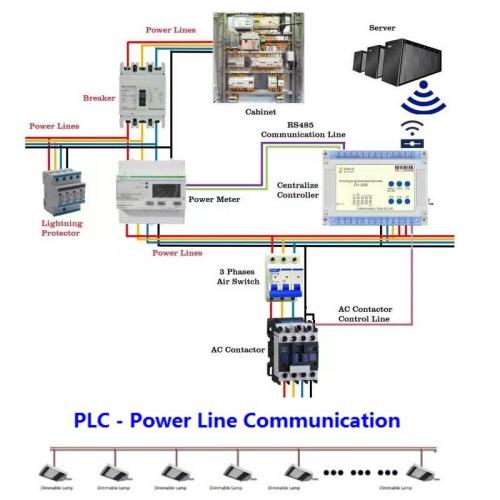

インテリジェント照明プロジェクト用のキャビネットコントローラー


主な機能:
1 .サーバー容量:全国のプロジェクトで1台のサーバーを共有できます,クラウドベースのデータストレージ
2 .通信.チャネル:PLCまたはロラ/ハイブリッドPLCおよび2G / 3G/4Gのロラ
3 .自動スイッチ:自然光の強度または周囲の明るさに応じてオン/オフ,調光をオン/オフします
4 .モニター機能:w / v / i / tempt./空気品質-PM2.5
5 .センサーは、車両のモーションセンサーに従って雨/霧/雪/曇り/調光を検出します
6 . max .制御:数量.制限なし
7 .無線通信.:2 , 000m
8 .自動報告:温度/誤動作/ループ電源/漏れ/ドアオープン/盗難
9 .GPS/高度と緯度の設定と日の出/異常な場合の警告.
10.システムをインストールする前の資産管理.


電気的パラメータ:

アイテム

評価範囲

最大ローディングランプ数量.

400ユニット(産業用照明用に1000ユニット,オプションに拡張)

動作電圧

120 / 240v ±20% (max . <420v)

動作周波数

50Hz -60hz

切り替えO utput

8a(最大),O ver- 現在C apacity(抵抗負荷)

絶縁耐電圧

4kv , (rs485インターフェースと電源)

コミュニケーションチャンネル

plc ,lora,またはPLC+loraのハイブリッド

最大消費電力

<3ワット

リモコン

グループおよび個人のオン/オフ/調光

緯度と経度の切り替え

はい

照明センサー

照度センサー+モーションセンサーによるシームレスな塗りつぶしの明るさ

シーンの照明が自動的に

雨,曇り,霧,雪の日自動調整

グリッド/ランプ監視

v / i / w /pw,有効電力と無効電力,ランプの誘惑.,キャビネットのドアの状態,空気の質PM2.5,雪,雨,霧など.

電力量計

レポートと分析

gprs警告

ランプの故障,過熱/電圧,ワイヤーの盗難,GPS位置情報の盗難-グーグルマップ上の電気.

統計分析

輝度比,アラーム統計,省電力比,電圧/電流変動,環境モニター

保護

誘惑しすぎると自動的にシャットダウンします.;ロケーションスティーリングとパワースティーリングの自動計算,ワイヤースティーリングアラームとロケーション,電流の影響を減らし、寿命を延ばします.

資産運用管理

低予算で資産管理システムを選択できます

ビデオモニタリング

より安全な都市のためのcctvカメラ(オプション)

ev充電

オプション

絶縁 耐電圧

l / n-pe

1 . 5kv

l / n-485 / dim

3 . 5kv

サージプロテクト (l-n L-PE n-pe)

±8kv

静的E 電気

±8kv

作動温度

-25℃〜+60℃

ストレージとW オーキングH umidity

≤85%

IP定格

ip54

寸法

155x110 * 110mm(l / w / h)

認定

ce , rohs


伝言を残す
あなたは私達のプロダクトに興味があり、詳細を知りたいのですが、ここにメッセージを残してください
関連製品
CH HOHB
200 lm/W High Performance  Industry Light: A significant amount of less energy is used with 200 lm/W efficiency – 25% more efficient than standard LED industry light (150 lm/W). By using cut-edge technology, our High Performance, range at the top of the game when it comes to efficacy - up to 200 lumens per watt, and minimum 25% power saving than nowdays polular design of 150 lm/W model. It’s better than buying a cheap industry light with lower luminous efficacy and paying a lot more for electricity over the next 5~10 years. Slash Your Energy Bill and Reduce Carbon Emissions. How much can you save with High Performance+ industry Light? Assuming you need 15,000 lumens, you'll only need 75 watts with our highly efficient industry light vs 200W with a standard LED high bay light. That's nearly 25% electricty savings. High quality industry light will last for years and you need to consider the overall cost as well as the impact on the environment to select the right option. By choosing High Performance, your investment will quickly break even, and the energy saved will help reduce carbon emissions. Moreover, with this guarantees a comfortable light which is ideal in places like warehouse, huge plant, logistic center, office buildings, hospitals, dental practices, schools, universities and shopping mall. Our High Performance+  high way come with a 5-year warranty and are guaranteed no-yellowing to give you peace of mind.
CH HOPAN22W
Human centric panel lighting 180 lumen per Watt luminous efficacy with Motion Sensor seamless connecting with Digital Industry Light Control System for maximum energy optimization
CH UWFLED600W
主な機能: 1.電力範囲は50W,100W , 200W , 500W , 600W , 1500W 2 .海底下50フィートから1000フィートの深海から魅力的な魚の誘惑(深さ300m) 3.実用新案の意匠 4 . VHO LEDチップにより、効率が25%向上 5 .塩水(海洋環境)で5〜10年間細かく動作するマリングレードケーブル
CH QT1680
SOWIN GXEC stroboscope xenon flash tube review center is built for industrial strobe flash tube, stroboscope replacement lamp, inspection strobe xenon tube, timing light flash tube, and strobe tube repair programs where the real requirement is not simply a bright pulse, but repeatable motion freeze, timing visibility, trigger stability, inspection contrast, and repair-bench continuity. Replacement approval must be based on geometry, trigger coupling, pulse energy, optical field, duty cycle, environmental margin, and timing-output behavior, not a first flash or appearance match. For inspection, printing, packaging, RPM, textile, web, portable maintenance, and legacy stroboscope programs across heat, dust exposure, vibration, production duty, and repeated service cycles, SOWIN supports flash tube review routes with field-risk control and repeatable service logic. Serious approval should be judged by trigger reliability, reflector fit, optical contrast, timing behavior, and motion-freeze confidence before scale procurement. Multiple tube geometries and material routes can be reviewed for industrial stroboscopes, printing lines, packaging inspection, textile and web inspection, portable service tools, legacy repair benches, and tender-driven spare-part programs. Optional German-imported QUARTZ or SCHOTT glass routes can be reviewed when stronger thermal-load tolerance and reduced blackening risk are needed. The goal is to help OEMs, integrators, repair teams, distributors, and procurement officers choose a stroboscope flash route by timing visibility, motion-freeze control, and repeatable service performance - not by appearance alone.
CH EK300
theI インテリジェント 業界L ファイティングC オントロールS システム 倉庫,工場,ロジスティックセンター,オフィスビル,発電所,石油化学製品,コークス化,鉱山,変電所,空港,港,に最適です鉄道駅,など..サーバー,すべてのレベルのワークステーション,オンサイトT ouch-screen-control またはモバイルデバイス(携帯電話,タブレット,など.),これらの領域の照明機器を制御するための手動の一時的な介入または自動操作またはリンケージモード, また データ収集と監視.
CH SMST210EFF
Key Features To prevent theft and vandalism, GPS positioning allows for real-time tracking of stolen street light. Hybrid AC & Solar Power or Pure Solar Power 4G Sim Card CAT 1 Communication Technology (Hybrid PLC / LoRa  /LoRaMesh) Auto-change Solar to AC by Smart Detect Sensor within 3 seconds Cloud based IoT Lighting Controlling & Monitoring Real Time Data: Watts / Voltage / Current / Power Factor can be Remote Reading Power Consumption / Faulty Reporting Using high efficiency 5050 leds,more than 200lm/w. Adopting high efficiency monocrystalline silicon solar panel, conversion rate is more than 21%. Grade A LiFePo4 battery,capacity is more than 80% after 2000 cycles. PWM and MPPT solar charger Horizontal or vertical pole installation,mounted angle is adjustable

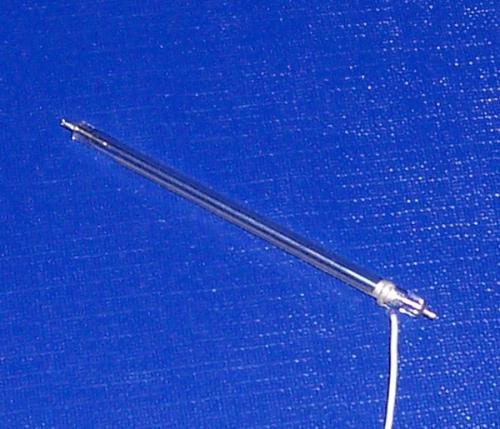

CH FU6030
